This is great, Nokia IP130 is using FreeBSD !!!
Nokia IP130 Specifications
Link to Nokia IP130 on www.nokia.com

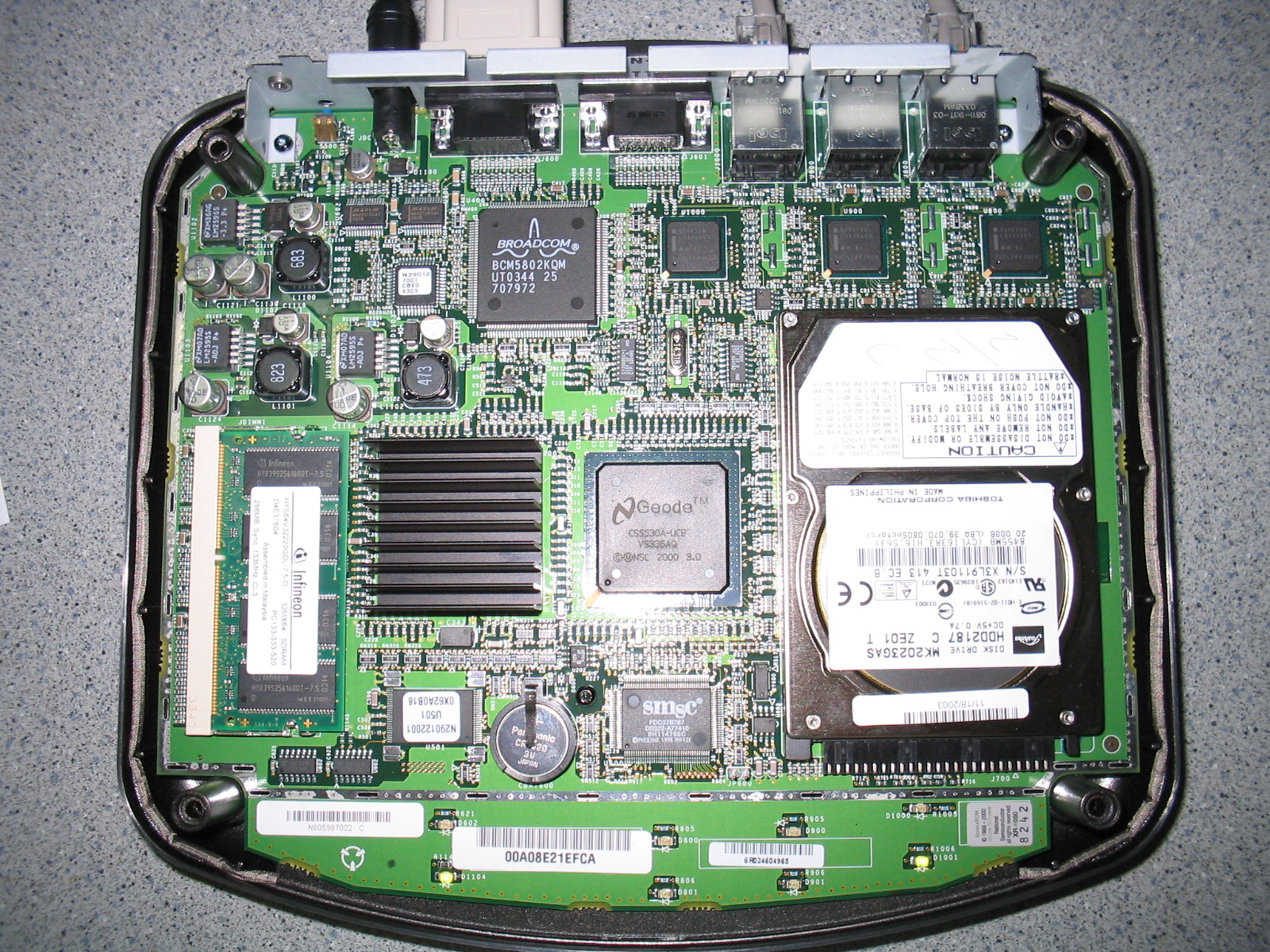

Pic 1

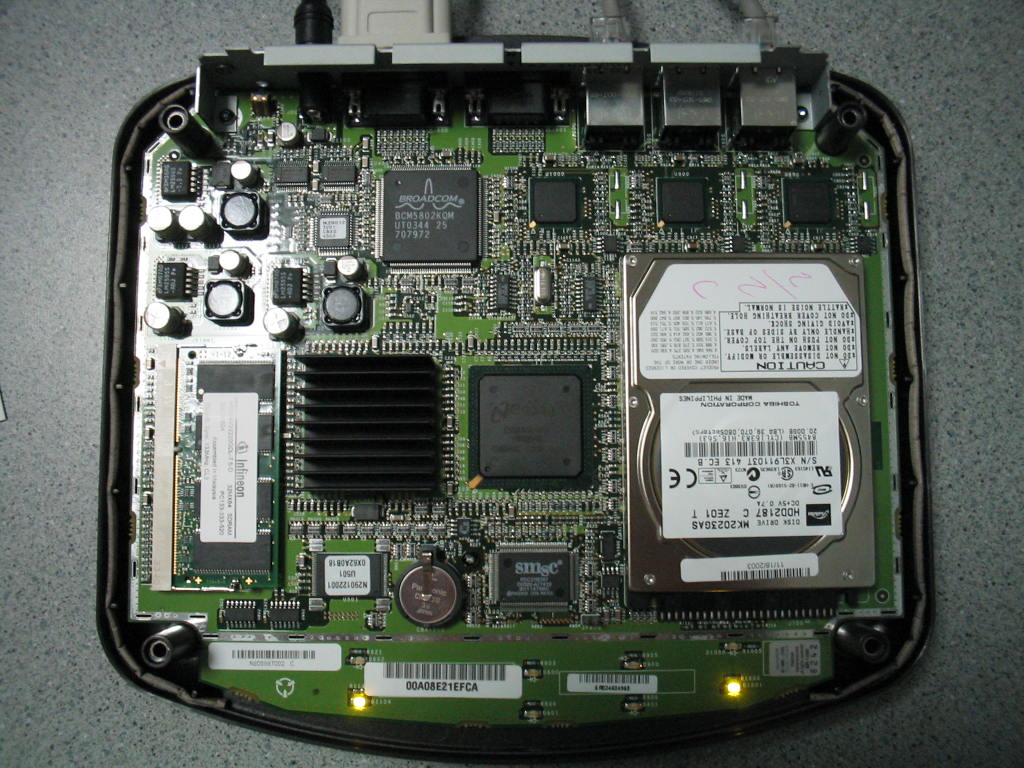

Pic 2

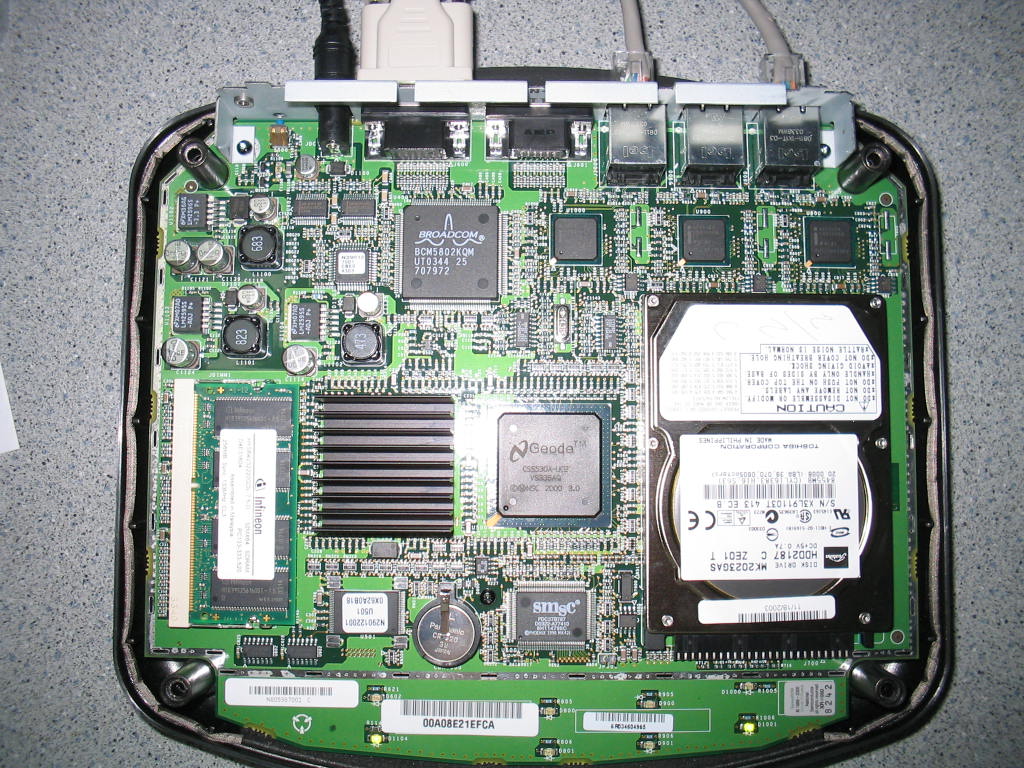

Pic 3

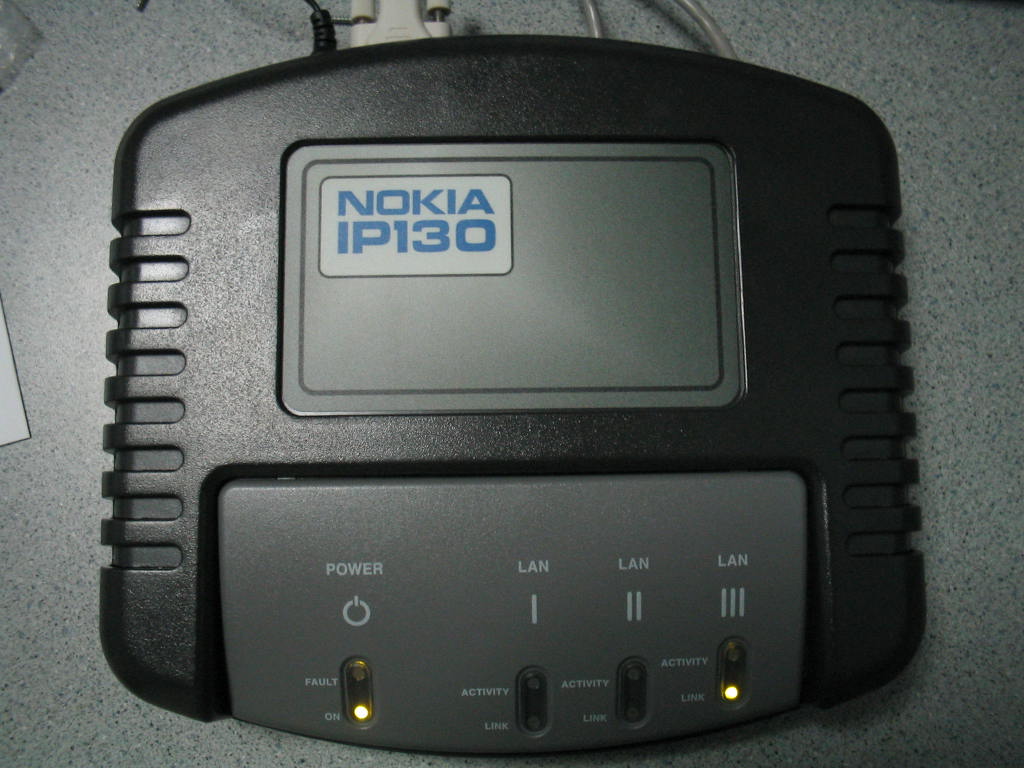

Pic 4
Let's start
1 Bootmgr
2 IPSO
Default: 1
Starting bootmgr
Loading boot manager..
Boot manager loaded.
Entering autoboot mode.
Type any character to enter command mode.
Booting /dev/wd0f:/image/IPSO-3.7-BUILD031-11.01.2003-054500-1222/kernel
[kernel] symtab a06a6000, sym_start a06a6004, sym_end a06e7290
[kernel] sym_size 56e1, str_size 5f604
[ preserving 0xa0894 bytes of kernel symbol table ]
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
Resizing packet buffers: mbufs 15360 clusters 14000
releng 1222 11.01.2003-054500
CPU: 300-MHz Pentium (586-class CPU)
real memory = 268435456 (256M bytes)
avail memory = 251539456 (239M bytes)
mediagx0 rev 0 on pci0:0:0
mediagx1 rev 48 on pci0:18:0
mediagx2 rev 0 on pci0:18:1
mediagx3 rev 0 on pci0:18:2
cyrix 5530
Probing for devices on the ISA bus:
sio0 at 0x3f8-0x3ff irq 4 on isa
<5>sio0: type 16550A
sio1 at 0x2f8-0x2ff irq 3 on isa
<5>sio1: type 16550A
wdc0 at 0x1f0-0x1f7 irq 14 on isa
Setting using 0x1000
wd0: mw=0x2, pio=0x4, pcirev=0x0, udma=0x2
wdc0: unit 0 (wd0): , LBA, DMA
wd0: 20003MB (39070080 sectors), LBA geometry: 2432 cyls, 255 heads, 63 S/T
wd0: Physical geometry: 16383 cyls, 16 heads, 63 S/T
npx0 on motherboard
npx0: INT 16 interface
superio0 at 0x0 on isa
mediagx4 rev 0 on pci0:18:3
fxp0 rev 16 int a irq 6 slot 1
netlog:eth-s1p1 .. Ethernet address 0:a0:8e:21:ef:ca
fxp1 rev 16 int a irq 10 slot 2
netlog:eth-s2p1 .. Ethernet address 0:a0:8e:21:ef:cb
fxp2 rev 16 int a irq 11 slot 3
netlog:eth-s3p1 .. Ethernet address 0:a0:8e:21:ef:cc
ubsec0 rev 1 int a irq 12 on pci0:13:0
sizeof hwa_dev_t = 12
changing root device to wd0f
swapon: adding /dev/wd0b as swap device
Automatic reboot in progress...
/dev/rwd0f: clean, 461229 free (949 frags, 57535 blocks, 0.2% fragmentation)
/dev/rwd0a: clean, 37530 free (18 frags, 4689 blocks, 0.0% fragmentation)
/dev/rwd0d: clean, 14723240 free (432 frags, 1840351 blocks, 0.0% fragmentation)
/dev/rwd0e: clean, 2071034 free (2066 frags, 258621 blocks, 0.1% fragmentation)
Jan 16 14:13:49 xpand[28]: xpand will perform upgrade if necessary
clearing /tmp
checking for core dump...savecore: no core dump
recording kernel -c changes
starting system daemons: syslogd done.
Jan 16 14:13:52 spcssl [LOG_NOTICE] kernel: sio0: type 16550A
Jan 16 14:13:52 spcssl [LOG_NOTICE] kernel: sio1: type 16550A
ifmnetlog:eth-s3p1 .. enabling 100baseTX/UTP port in full duplex mode
netlog:eth-s3p1 .. enabling 100baseTX/UTP port in half duplex mode
netlog:eth-s2p1 .. enabling 10baseT/UTP port in half duplex mode
netlog:eth-s1p1 .. enabling 10baseT/UTP port in half duplex mode
done.
Generating config files for spcssl: ipsrd hosts password group resolver snmp inetd ttys tz
Jan 16 14:13:55 spcssl [LOG_INFO] kernel: netlog:eth-s3p1 .. enabling 100baseTX/UTP port in half duplex mode
Jan 16 14:13:55 spcssl [LOG_INFO] kernel: netlog:eth-s2p1 .. enabling 10baseT/UTP port in half duplex mode
Jan 16 14:13:55 spcssl [LOG_INFO] kernel: netlog:eth-s1p1 .. enabling 10baseT/UTP port in half duplex mode
ssmtp skey arp ndp aggrclass acl ddr ef syslog autosupport httpd lynx modem cron archive ipsec fmd AAA cluster xmode ssh ipt.Fri Jan 16 14:14:00 GMT 2004
IPSO (spcssl) (ttyd0)
login:
login: admin
Password:
Last login: Fri Jan 16 14:12:07 on ttyd0
Jan 16 14:14:56 spcssl [LOG_INFO] login: DIALUP ttyd0, admin
Jan 16 14:14:56 spcssl [LOG_NOTICE] login: ROOT LOGIN (admin) ON ttyd0
Jan 16 14:14:56 spcssl [LOG_NOTICE] login: ROOT LOGIN (admin) ON ttyd0
Jan 16 14:14:56 spcssl [LOG_INFO] login: login on ttyd0 as admin
IPSO 3.7-BUILD031 #1222: 11.01.2003 054500
Terminal type? [vt100]
[admin]# pwd
/var/admin
[admin]# ls -al /
total 8
drwxr-xr-x 8 root wheel 512 Jan 3 2000 .
drwxr-xr-x 8 root wheel 512 Jan 3 2000 ..
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 bin -> @sys/bin
lrwxr-xr-x 1 root wheel 12 Jan 3 2000 bootmgr -> @sys/bootmgr
drwxr-xr-x 2 root wheel 512 Jan 3 2000 cdrom
drwxr-xr-x 3 root wheel 512 Jan 15 02:33 config
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 dev -> @sys/dev
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 etc -> @sys/etc
drwxr-xr-x 3 root wheel 512 Jan 3 2000 image
drwxr-xr-x 19 root wheel 512 Jan 16 14:13 opt
dr-xr-xr-x 30 root wheel 512 Jan 16 14:18 proc
lrwxr-xr-x 1 root wheel 9 Jan 3 2000 sbin -> @sys/sbin
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 tmp -> var/tmp2
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 usr -> @sys/usr
drwxr-xr-x 16 root wheel 512 Jan 3 2000 var
lrwxr-xr-x 1 root wheel 8 Jan 3 2000 web -> @sys/web
[admin]# ps aux
USER PID %CPU %MEM VSZ RSS TT STAT STARTED TIME COMMAND
root 227 0.0 0.1 416 216 d0 R+ 2:18PM 0:00.06 ps -aux
root 1 0.0 0.1 356 188 ?? Is 2:13PM 0:00.01 /sbin/init --
root 2 0.0 0.0 0 20 ?? DL 2:13PM 0:00.00 (pagedaemon)
root 3 0.0 0.0 0 20 ?? DL 2:13PM 0:00.00 (vmdaemon)
root 4 0.0 0.0 0 20 ?? DL 2:13PM 0:00.03 (update)
root 61 0.0 0.1 184 348 ?? Is 2:13PM 0:00.07 syslogd -6
root 71 0.0 0.2 868 596 ?? Is 2:13PM 0:00.19 /bin/pm
root 141 0.0 0.8 6072 1920 ?? Ss 2:13PM 0:00.13 /bin/ipsrd -N
root 143 0.0 0.8 1108 2048 ?? Ss 2:13PM 0:01.39 /bin/httpd -d /web
root 148 0.0 1.1 1172 2672 ?? Is 2:13PM 0:00.52 /bin/xpand
root 149 0.0 0.3 620 872 ?? Is 2:13PM 0:00.23 /bin/ifm /config/active
root 184 0.0 0.2 228 600 ?? Is 2:14PM 0:00.02 /usr/sbin/inetd -n
root 186 0.0 1.2 2200 3100 ?? Is 2:14PM 0:11.59 /bin/clishd default server
root 187 0.0 0.6 224 1536 ?? Is 2:14PM 0:00.12 /bin/ipsopmd -s /var/ne3suser/schedule -p /var/ne3suser/repository/MR.1.0.4.xml -c /etc/repfile -o /var/ne3suser/results
root 188 0.0 1.5 4012 3776 ?? Ss 2:14PM 0:01.11 /bin/snmpd -f
root 189 0.0 0.8 1536 1988 ?? Is 2:14PM 0:01.24 /bin/monitord
root 190 0.0 0.3 340 732 ?? Is 2:14PM 0:00.04 /bin/oamd
root 191 0.0 0.2 268 616 ?? Is 2:14PM 0:00.05 /usr/sbin/cron
root 192 0.0 0.2 204 532 ?? Is 2:14PM 0:00.02 /bin/pccardd
root 193 0.0 0.6 484 1540 ?? Is 2:14PM 0:01.18 /usr/sbin/sshd-x -D
nobody 202 0.0 0.3 1108 636 ?? I 2:14PM 0:00.01 /bin/httpd -d /web
nobody 203 0.0 0.3 1108 636 ?? I 2:14PM 0:00.01 /bin/httpd -d /web
root 204 0.0 0.2 160 516 ?? I 2:14PM 0:00.01 /usr/libexec/getty Pc ttyv0
root 205 0.0 0.2 160 516 ?? I 2:14PM 0:00.01 /usr/libexec/getty Pc ttyv1
root 206 0.0 0.2 160 516 ?? I 2:14PM 0:00.01 /usr/libexec/getty Pc ttyv2
root 207 0.0 0.1 488 360 d0 Ss 2:14PM 0:00.27 -csh (csh)
root 0 0.0 0.0 0 0 ?? DLs - 0:00.00 (swapper)
[admin]#dmesg
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
Resizing packet buffers: mbufs 15360 clusters 14000
releng 1222 11.01.2003-054500
CPU: 300-MHz Pentium (586-class CPU)
real memory = 268435456 (256M bytes)
avail memory = 251539456 (239M bytes)
mediagx0 rev 0 on pci0:0:0
mediagx1 rev 48 on pci0:18:0
mediagx2 rev 0 on pci0:18:1
mediagx3 rev 0 on pci0:18:2
cyrix 5530
Probing for devices on the ISA bus:
sio0 at 0x3f8-0x3ff irq 4 on isa
sio0: type 16550A
sio1 at 0x2f8-0x2ff irq 3 on isa
sio1: type 16550A
wdc0 at 0x1f0-0x1f7 irq 14 on isa
Setting using 0x1000
wd0: mw=0x2, pio=0x4, pcirev=0x0, udma=0x2
wdc0: unit 0 (wd0): , LBA, DMA
wd0: 20003MB (39070080 sectors), LBA geometry: 2432 cyls, 255 heads, 63 S/T
wd0: Physical geometry: 16383 cyls, 16 heads, 63 S/T
npx0 on motherboard
npx0: INT 16 interface
superio0 at 0x0 on isa
mediagx4 rev 0 on pci0:18:3
fxp0 rev 16 int a irq 6 slot 1
fxp1 rev 16 int a irq 10 slot 2
fxp2 rev 16 int a irq 11 slot 3
ubsec0 rev 1 int a irq 12 on pci0:13:0
sizeof hwa_dev_t = 12
changing root device to wd0f
netlog:eth-s3p1 .. enabling 100baseTX/UTP port in full duplex mode
netlog:eth-s3p1 .. enabling 100baseTX/UTP port in half duplex mode
netlog:eth-s2p1 .. enabling 10baseT/UTP port in half duplex mode
netlog:eth-s1p1 .. enabling 10baseT/UTP port in half duplex mode
[admin]#cat /etc/fstab
/dev/wd0a /config ufs rw 1 2
/dev/wd0b none swap sw 0 0
/dev/wd0d /var ufs rw 1 2
/dev/wd0e /opt ufs rw 1 2
/dev/wd0f / ufs ro 1 1
proc /proc procfs rw 0 0
[admin]# mount
/dev/wd0f on / (local, read-only)
/dev/wd0a on /config (local)
/dev/wd0d on /var (local)
/dev/wd0e on /opt (local)
procfs on /proc (local)
[admin]# df -k
Filesystem 1K-blocks Used Avail Capacity Mounted on
/dev/wd0f 598029 136800 413387 25% /
/dev/wd0a 37556 26 34526 0% /config
/dev/wd0d 14732935 9723 13544578 0% /var
/dev/wd0e 2561196 490162 1866139 21% /opt
procfs 4 4 0 100% /proc
[admin]#cat /etc/passwd
root:*:0:0:Root:/var/admin:/bin/csh
admin:*:0:0:Admin:/var/admin:/bin/csh
monitor:*:102:10:Monitor:/var/monitor:/bin/csh
bin:*:3:7:Binaries Commands and Source,,,:/:/nonexistent
nobody:*:65534:65534:Unprivileged user:/nonexistent:/nonexistent
daemon:*:1:31:Owner of many system processes:/nonexistent:/nonexistent
[admin]#cat /etc/group
wheel:*:0:root,admin
daemon:*:1:daemon
kmem:*:2:root,admin
sys:*:3:root,admin
tty:*:4:root,admin
operator:*:5:root,admin
bin:*:7:
other:*:10:admin
config:*:11:admin
nogroup:*:65533:
nobody:*:65534:
[admin]# telnet localhost 22
port=22
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
SSH-1.99-OpenSSH_3.1p1
[admin]# telnet localhost 80
port=80
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
HEAD / HTTP/1.0
HTTP/1.1 200 OK
Date: Fri, 16 Jan 2004 14:21:10 GMT
Server: Apache/1.3.6 (Unix) mod_auth_pam/1.0a mod_ssl/2.8.8 OpenSSL/0.9.6d
Set-Cookie: Session=Login;path=/
Cache-Control: no-chache
Expires: -1
Connection: close
Content-Type: text/html
[admin]# reboot
Jan 16 14:12:42 spcssl [LOG_CRIT] reboot: rebooted by admin
Jan 16 14:12:42 spcssl [LOG_CRIT] reboot: rebooted by admin
Jan 16 14:12:42 spcssl [LOG_ERR] syslogd: exiting on signal 15
Jan 16 14:12:42 spcssl [LOG_ERR] syslogd: exiting on signal 15
cleaning up...
syncing disks... done
Rebooting...
|
